Coolnet Fluorine Pump Precision Cooling For Data Center Applications

Coolnet Fluorine Pump Series Precision Air Cooling System for Data and Call Centers with Energy-Saving Technology

Products Introduction

Coolnet fluorine pump series dual-cycle refrigerant system is a high-efficiency and energy-saving preciison air condioner. it provides precise temperature and humidity control for large and medium-size data rooms. Dual cycle system makes full use of outdoor natural cold sources and uses a set of refrigeraon systems to achieve three refrigeraon modes, It adopts high efficiency compressor and EC centrifugal fan to meet the requirements of 24 X 7 all weather connuous operaon.

Applications

Computer room and data center
Switch room and mobile center station in telecommunication
High-tech environment and lab
Industrial automation control room and precision manufacturing workshop
Standard test room and calibration center
UPS and battery room
Test room in hospital
Biochemical culture chamber

Products Configuraons

Controller

7-inch color touch screen high-precision control, a variety of group control modes, to achieve 32 units group control, precise and reliable contro.

PTC Heater

PTC electric heang, aluminum alloy fins heat up quickly, can realize automac temperature adjustment and even heat generaon.

EC Fan

Energy-saving EC centrifugal fan, large air volume, high stac pressure, smooth operaon, low noise

Scroll Compressor

Stable design realizes high reliability and durability for easy repair and maintenance. Low noise, low vibra�on and high energy efficiency throughout the enre operang period.

Humidify System

Electrode humidificaon volume, high efficiency and with automac flushing function.

Advantages & Features

Fluorine pump energy-saving dual-cycle air condioning technology leads the world
No fresh air circulaon system required, it will not affect the air quality in data center , without damage of the building appearance.
No Ethylene glycol , no worries about water polluon
Full use of natural cold sources, when ambinent temperature less than 25°C, the operaon of refrigerant pump can reduce the energy consumpon of the unit and have significant energy-saving effects.
AEER can reach 12
The indoor unit adopts high-performance EC fan
The evaporator adopts V-shaped design, with uniform return air and low resistance.
DC inverter compressor reduces energy consumpon

Technical Parameters

Model CYA	S30F	S35F	S40F	S45F	S50F	T62F	T72F	T82F	T92F	T102F
Total Capacity(KW)	30.6	36	41	45.8	50.4	61.6	71.8	81.6	91	100.8
Sensible Capacity(KW)	27.6	32.4	36.9	41.3	45.9	55.4	65.3	73.4	87.2	90.7
Fan Section	EC Fan
Fan Quantity	1	1	1	1	1	2	2	2	2	2
Air Flow (m³/h)	9200	10500	11500	12800	13500	18400	21000	23000	25600	27000
Excess Pressure Outside Pa	Standard pressure is 20Pa, adjustable from 20~300Pa
Air Fiter	G4
Compressor	Scroll Compressors
Compressor Quantity	1	1	1	1	1	2	2	2	2	2
Refrigerant	R410A
Electric Heating Type	PTC Electrical Heating
Capacity(KW)	6	6	9	9	9	9	9	9	15	15
Rated Current(A)	10	10	14	14	14	14	14	14	23	23
Humidifier Section	Electrode Steam Humidification
Capacity(kg/h)	5	5	8	8	8	13	13	13	13	13
Rated Current (A)	6	6	10	10	10	15	15	15	15	15
Power Supply	380v/50HZ 3N~
Full Loaded Circuit	41	47.2	53.9	60	61.6	77.5	89.8	100.4	115.4	118.6
Humidifier Inlet Pipe(in)	G1/2"
Condensate Drainage DN(mm)	18
Gas Pipe (mm)	22
Liquid Pipe (mm)	15.88	15.88	15.88	19.05	19.05	15.88	15.88	15.88	19.05	19.05
Installation Parameters for Indoor Units
Dimension WDH (mm)	8909831975		13159831975			17409831975		21659831975
Weight(kg)	366	368	453	468	485	652	655	708	716	735
Condenser
Model CY	0522	0582	0662	0742	0832	0522	0582	0662	0742	0832
Quantity	1	1	1	1	1	2	2	2	2	2
Pump Cabinet
Model CN-LAF	1	1	1	1	1	2	2	2	2	2
Dimension	460220660

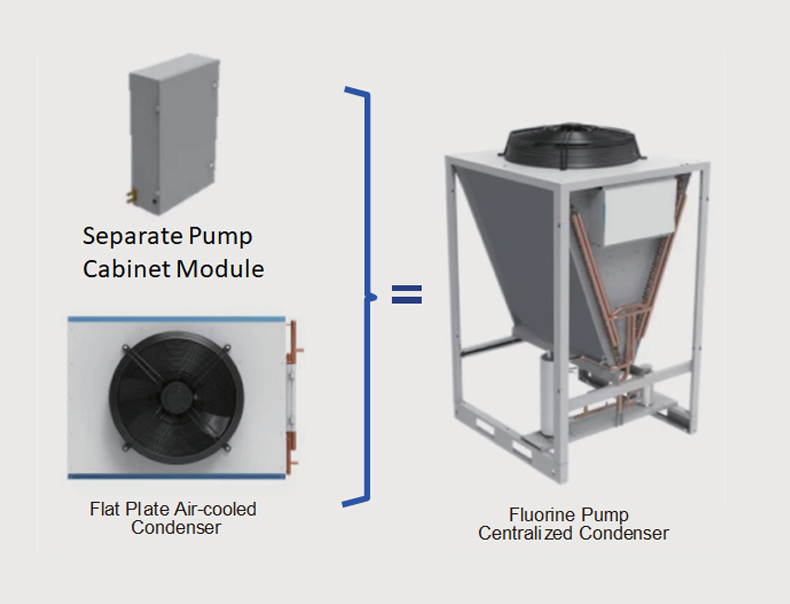

Integrated Condenser with Pump
Outdoor Temperature 35°C	CYP0441	CYP0551	CYP0551	CYP0661	CYP0771	CYP0882	CYP1102	CYP1102	CYP1322	CYP1542
Outdoor Temperature 45°C	CYP0551	CYP0661	CYP0661	CYP0771	CYP0881	CYP1102	CYP1322	CYP1322	CYP1542	CYP1762
